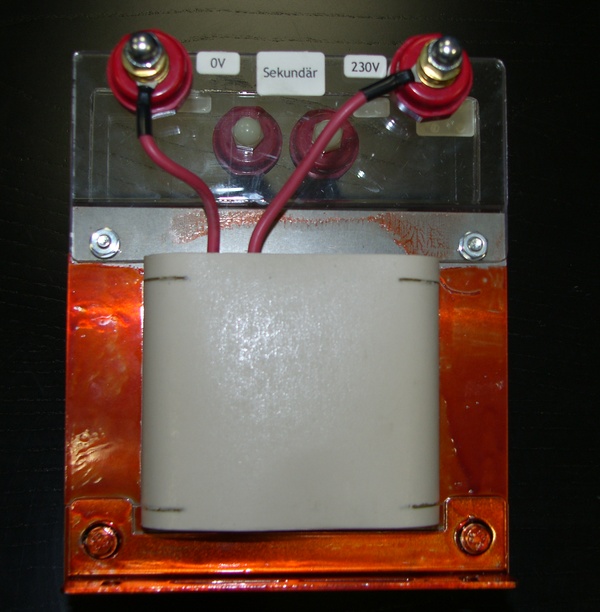

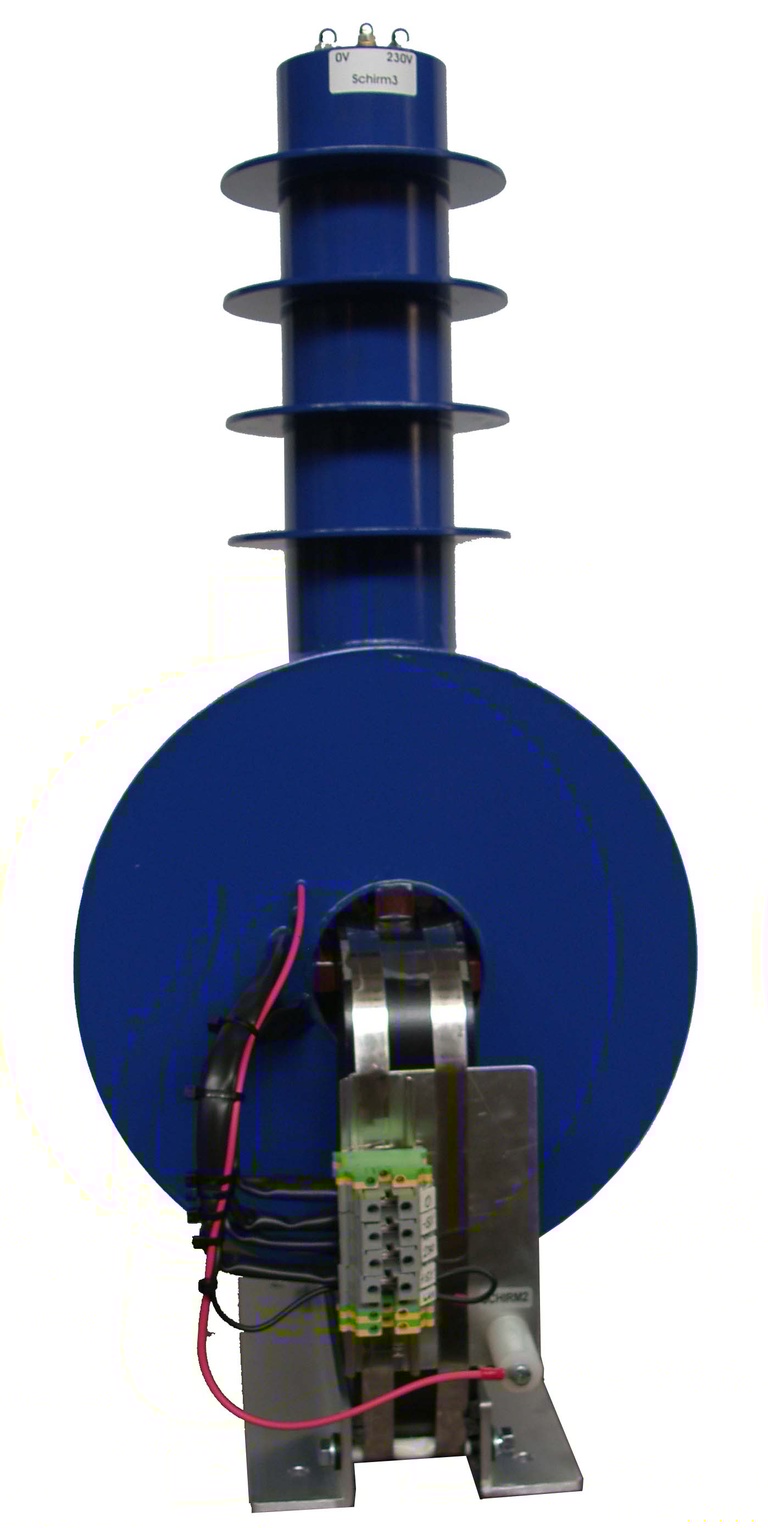

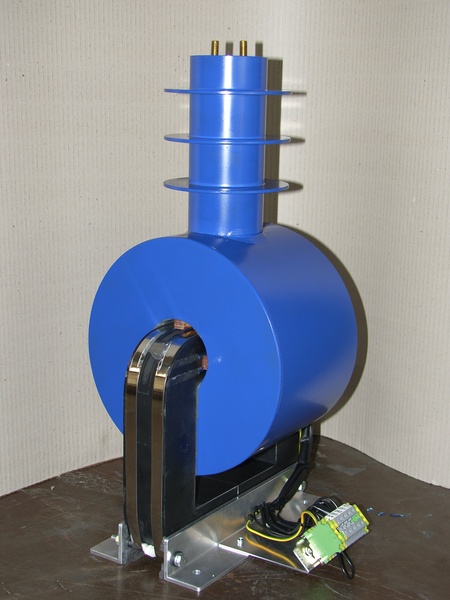

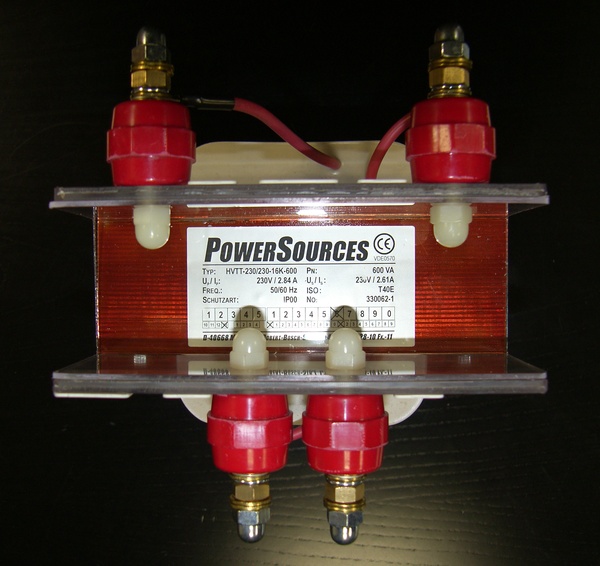

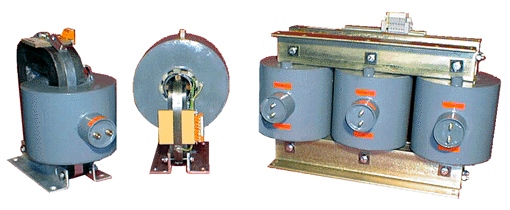

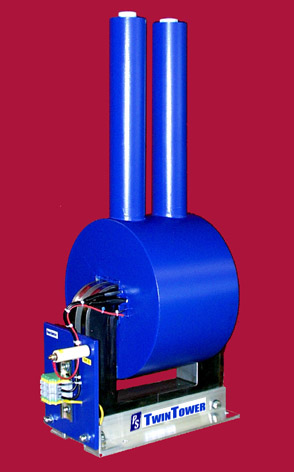

- Small + Medium Power
- Ultra Compact Design
- Environmental Friendly
- Vacuum Cast Resin
- Up to 200kV 1~ and 3~
- 1~ up to 10kVA
- 3~ up to 30kVA
- 2.5Hz up to 1000kHz
- Customer Specific Design
Typ | Uprim | Usec | Insulation | Frequency | Power | Application field |
---|---|---|---|---|---|---|
V | V | kV | Hz | VA | ||
HVTT-500-25K | 230 | 230 | 25 | 50 | 500 | Insulation Transformer |
HVTT-1K2-40K | 230 | 230 | 40 | 50 | 1200 | transmission mast |
HVTT-100-50K | 230 ±5% | 230 | 50 | 50 | 100 | test bay |
HVTT-2K-60K | 230 | 230 | 60 | 50 | 2000 | Insulation Transformer Cern |
HVTT-500-60K | 230 | 230 | 60 | 50 | 500 | test bay |
HVTT-600-60K | 230 ±5% | 230 | 60 | 50 | 600 | test bay |
HVTT-2K-60K | 230 | 230 | 60 | 50 | 2000 | test bay |
HVTT-3K-60K | 230 | 230 | 60 | 50 | 3000 | test bay |
HVTT-150-120K | 230/460 | 12 | 120 | 50 | 150 | cathode filament transformer |
HVTT-1K-120K | 230 ±5% | 230 | 120 | 50 | 1000 | plasma application |
HVTT-1.5K-120K | 230 ±5% | 230 | 120 | 50 | 1500 | test bay |

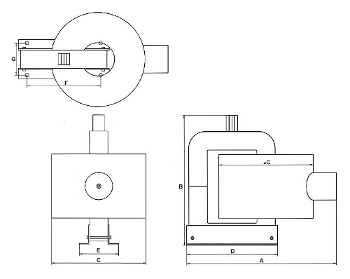

Type | Phase | Dimension in mm | ||
---|---|---|---|---|
A | B | C | ||
SBK106 | 1 | 150 | 150 | 100 |
SBK118 | 1 | 320 | 253 | 250 |
SBK147 | 1 | 350 | 350 | 250 |
SBK184 | 1 | 360 | 357 | 250 |
SBK214 | 1 | 385 | 407 | 250 |
