Three-phase Insulation Transformers

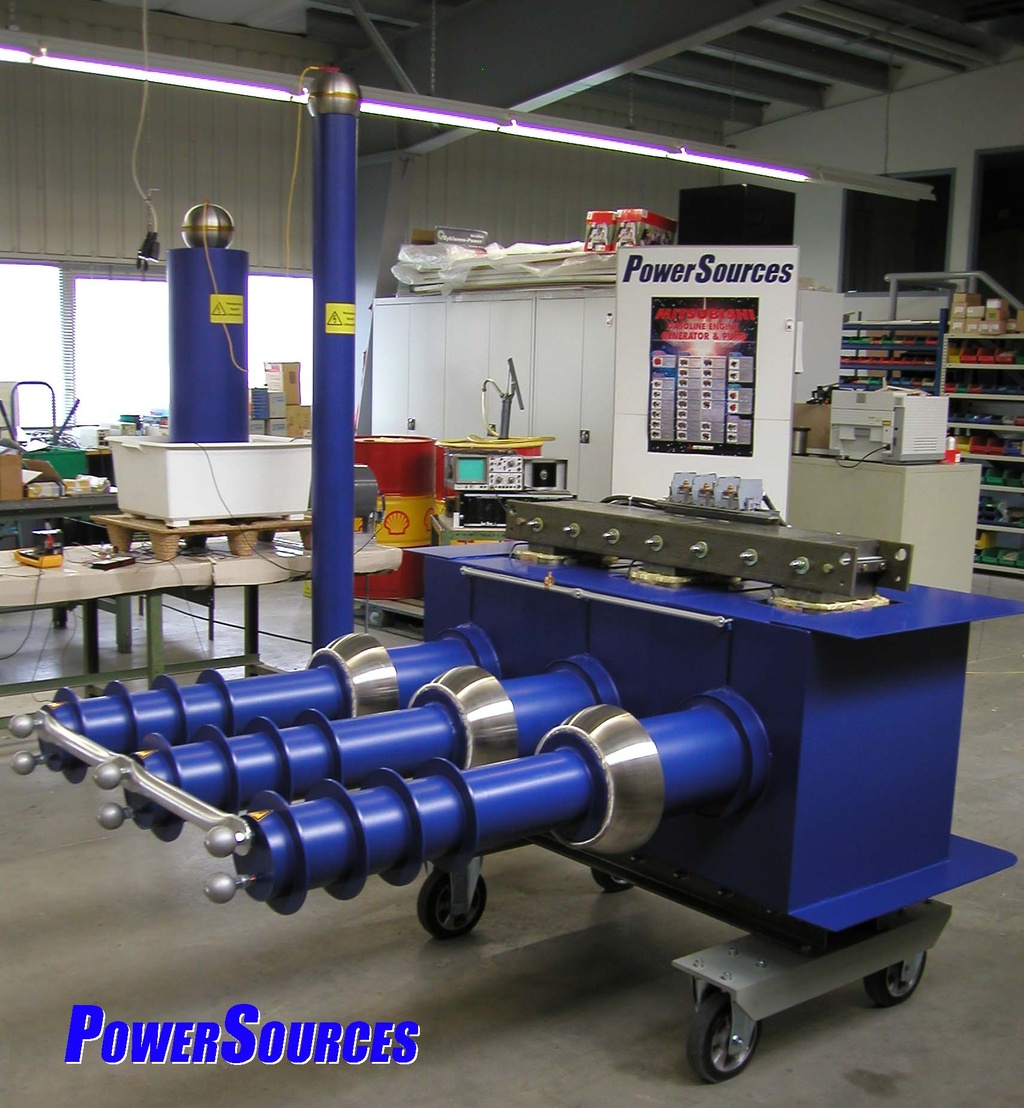

Example Three Phase HV Insulation Transformer
  • Small + Medium Power
  • Ultra Compact Design
  • Environmental Friendly
  • Vacuum Cast Resin
  • Up to 200kV 1~ and 3~
  • 1~ up to 10kVA
  • 3~ up to 30kVA
  • 2.5Hz up to 1000kHz
  • Customer Specific Design











TypeUprimUsecInsulationFrequencyPowerApplication field
V V kV DC Hz VA
HVDTT-3K-40K 3x 400 3x 400 40 50 3000 transmission mast
HVDTT-5K-40K 3x 400 3x 400 40 50 5000 transmission mast insulation
HVDTT-7K-40K 3x 400 3x 400 40 50 7000 transmission mast insulation
HVDTT-15K-40K 3x 400 3x 400 40 50 15000 transmission mast insulation
HVDTT-15K-150K 3x 400 3x 400 150 50 15000 transmission mast insulation

Abmessung Dreiphasiger Transformator
TypePhaseDimension in mm
ABC
3UI420 3 500 350 300
3UI530 3 600 450 350
3UI550 3 680 640 350
