Bahntestanlage 16 2/3 NEtz Beispiel DB20K/200 High voltage power supplies of the types DB20K / 300 have been specially designed for the supply of loads in the 162/3 Hz railway network. The devices are typically manufactured with output voltage up to 25,000 volts and output power from 10kVA to 1MVA.

The main application areas are:
  • Testing of railway systems and equipment
  • Simulation of overhanging contact wire
  • Feeding into local contact wire voltage networks

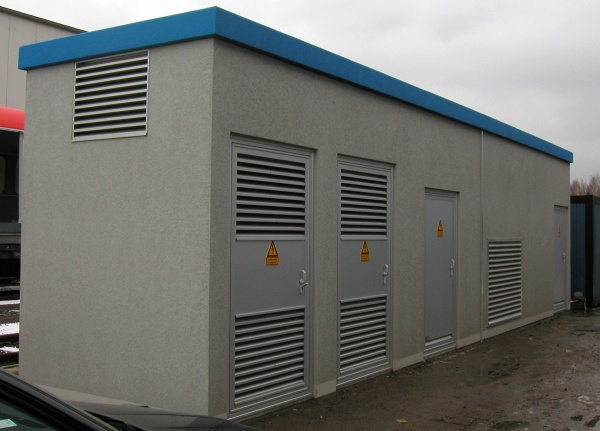

Construction
  • in two containers for outdoor installation
  • Connecting the container from below

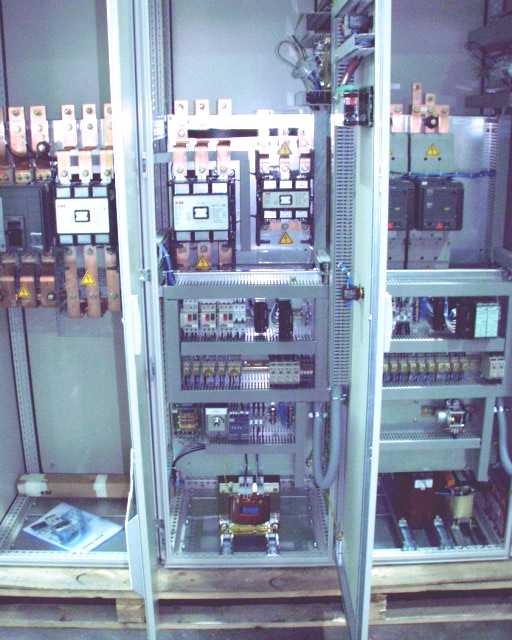

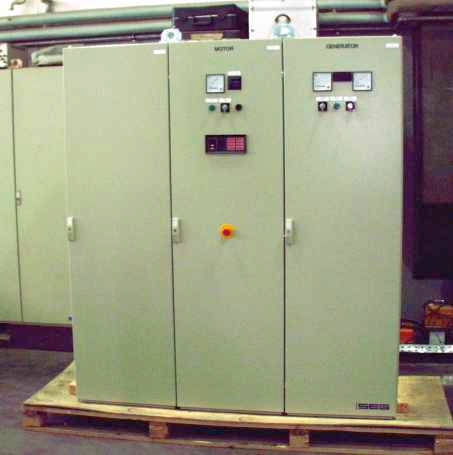

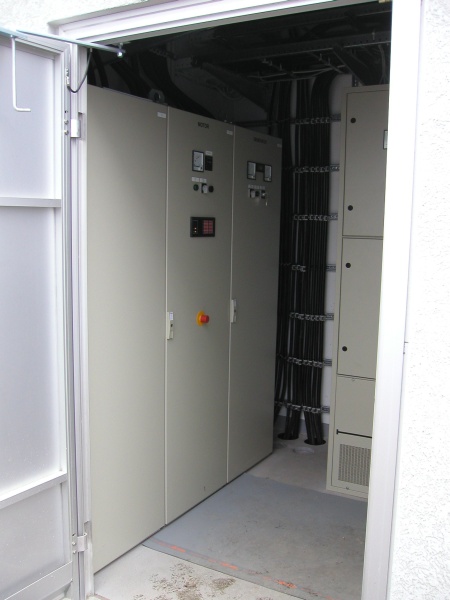

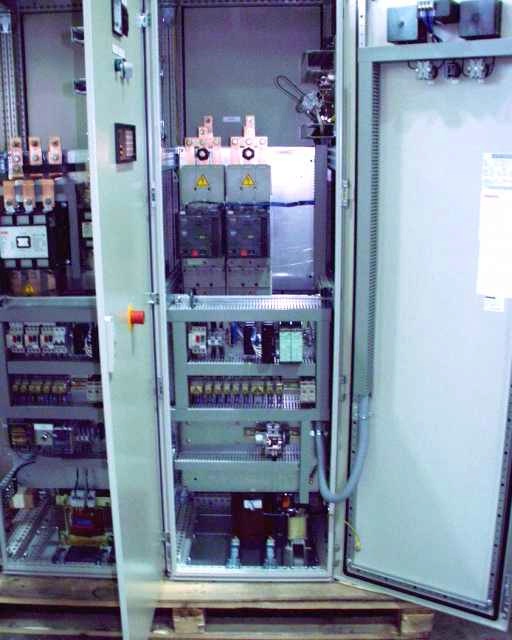

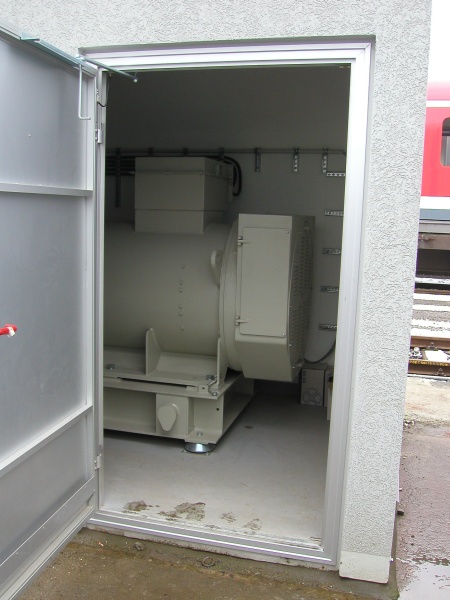

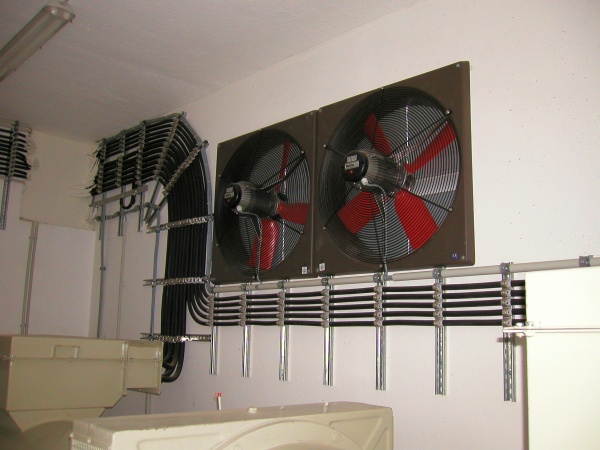

Container I (20ft):
Type: DSKS 526/862-300
Input Voltage: 3 x 400V
Input Frequency: 50Hz
Output Voltage: 1000V
Output Frequency: 16 2/3Hz
Power: 300kVA
Voltage adjustment: 65 - 105 %
Dimensions (LxWxH): approx. 6m x 2,5m x 2,6m

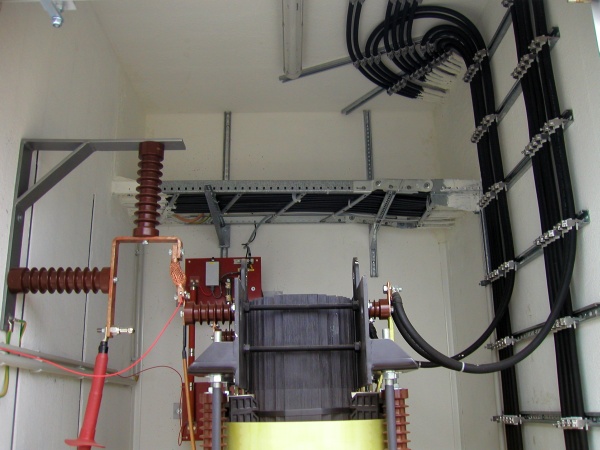

Container II (10ft):

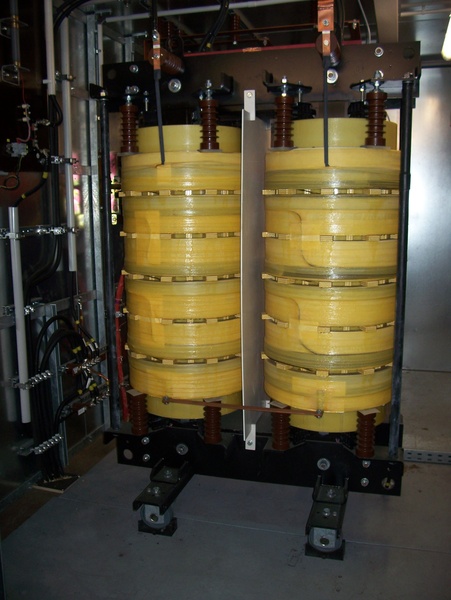

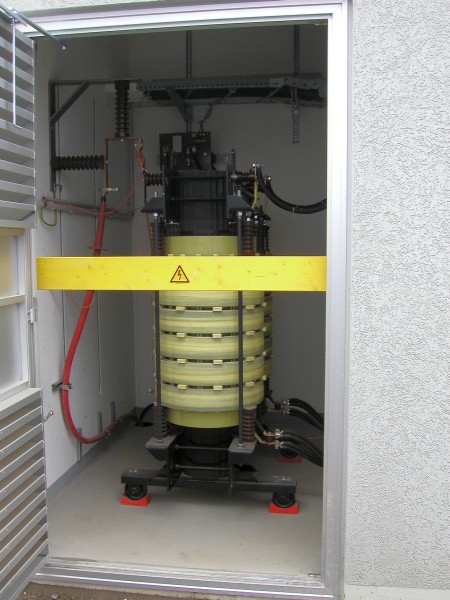

Main transformer: primary:   1000V
secondary: 20kV / 15A
Range switching: Load Break Switches
Compensation condition: 2 x 10µF / 1400V
2 x 20µF / 1400V
Dimensions (LxWxH): approx. 3m x 2,5m x 2,6m

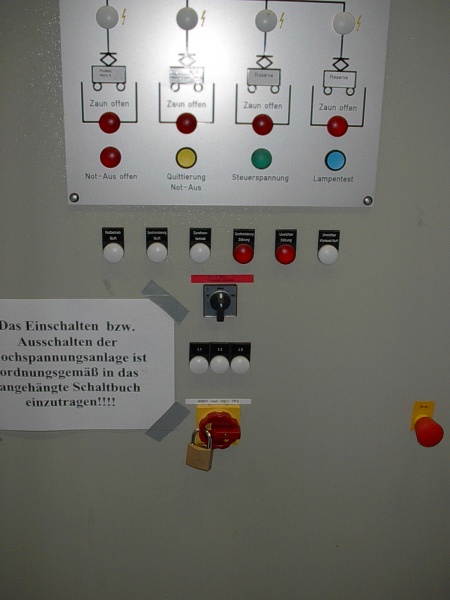

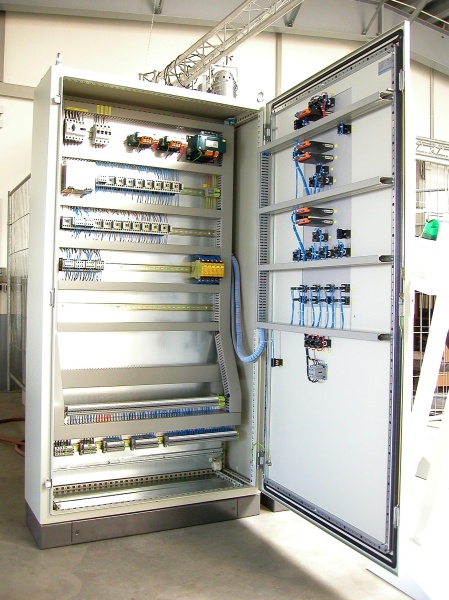

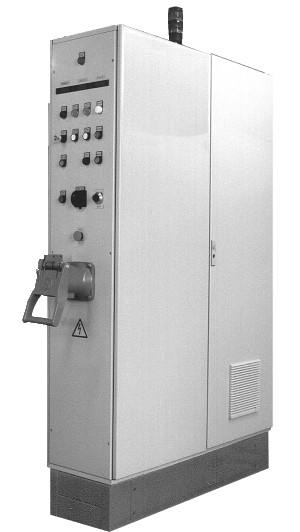

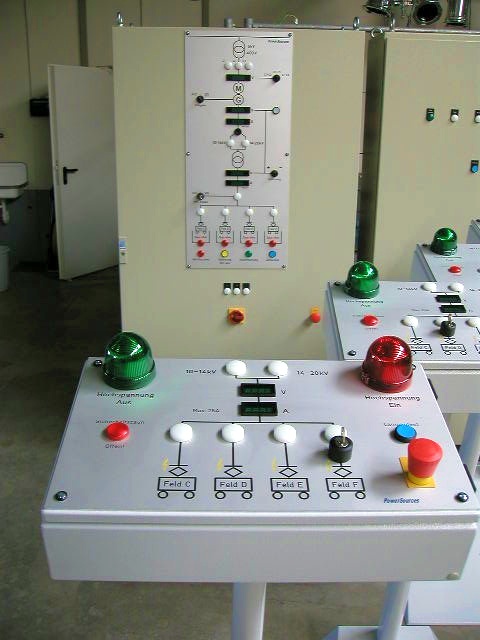

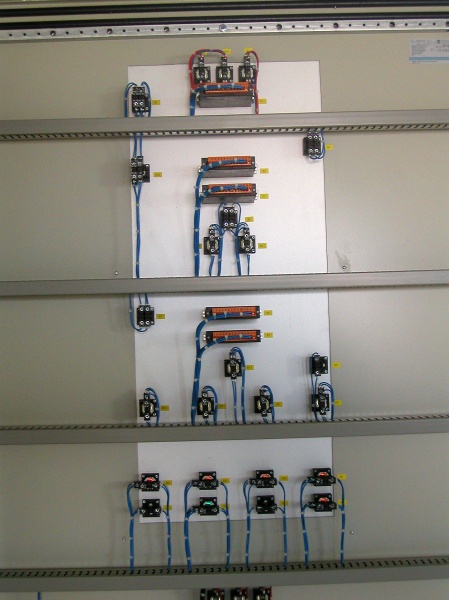

Control Cabinet
  • Display of the main operating parameters on the
    control panel
  • Remote control of the HV components in the containers
  • Control of the external high voltage switch
  • Integrated control for the connection of two supply
    points, each access point selectively connectable
Auxiliary voltage: 3 x 400V / max. 6A
Dimensions (WxHxD): ca. 800 x 2000 x 400 mm
Technical Specifications
Output Voltage: 10 - 20kV
  • Switchable in two areas
  • Infinitely adjustable within the ranges
  • Range switching under load possible
Section 1: 10 - 14kV
Section 2: 14 - 20kV
Output power: max. 300kVA
Output current: max. 15A
Frequency: 16 2/3Hz
