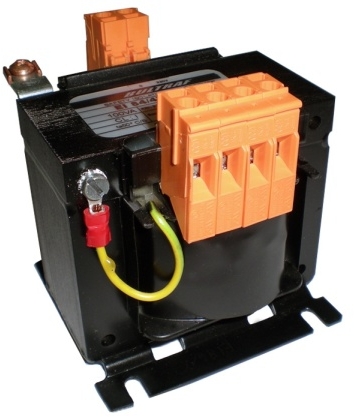

Single-phase Transformer with terminal connection designed for the electronic industry with power from 25VA to 1000VA.
| Betrieb: | VDE 0551 / EN 60742 / IEC 742 / VDE 0570 open design, available on request with security |
| Protection class: | I |
| Protection: | IP 00, fixed |
| Insulation class: | ta40B |
| Frequency: | 50 / 60 Hz |
| Primary: | optional 230V ± 5% or 400V ± 5% |
| Secondary: | 24V (order number 21xxx) or 42V (order number 22xxx) |
| Item No: | Item No: | Power | Dimension (mm) | Weight (kg) | ||||||

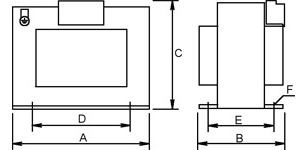

| 230 V + - 5 %/ | 400 V + - 5 %/ | (VA) | A | B | C | D | E | F | Cu. | Whole |
| 24 V | 24 V | |||||||||
| PS21046631 | PS21446631 | 25 | 66 | 70 | 80 | 50 | 41 | 9 x 4,5 | 0,2 | 1 |
