Rotating Current Isolating Transformer Series DKA

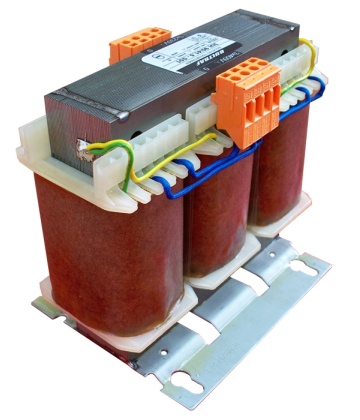

Rotating Current Isolating Transformer Series DKA

Rotating current isolating transformer with terminal connection designed for the electronic industry with power from 125VA to 100kVA.

Operation: VDE 0570 Teil 2-4 DIN EN 61558-2-4 / IEC 61558-2-4 open design
Protection class: I
Protection: IP 00, fixed
Isolation class: ta40B
Circuit: Yy0 / or Dyn5
Frequency: 50 / 60Hz
Primary: 3x 400V
Secondary: 3x 400V

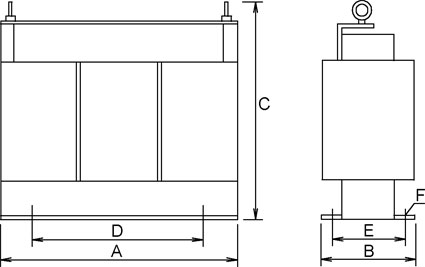

Rotating Current Isolating Transformer Series DKA sketch Attention: Lifting eyes only from Item No. E8016241 following

Item No.: Power Dimension (mm) Weight (kg)
  (VA) A B C D E F Cu. Whole
PSE7976631 125 125 61 115 100 45 5 x 8 0,7 2
PSE7986631 160 125 71 115 100 55 5 x 8 0,9 3
PSE7996631 250 155 77 135 130 57 8 x 12 1,6 4
PSE8006631 400 155 92 135 130 72 8 x 12 2 6
PSE8016631 630 190 82 160 170 60 8 x 12 2,9 7,5
PSE8026631 1000 190 102 160 170 79 8 x 12 4,5 12
PSE8126631 1600 230 144 200 180 155 8 x 15 6 18,5
PSE8226631 2000 230 144 200 180 155 8 x 15 8 20
PSE8036631 2500 265 130 225 215 101 11 x 15 10 23
PSE8136631 3000 265 140 225 215 115 11 x 15 11 29
PSE8046631 4000 300 155 315 240 117 11 x 15 15 35
PSE8146631 5000 300 165 315 240 130 11 x 15 17 43
PSE8016241 6300 360 165 355 310 123 11 x 15 22 52
PSE8116241 8000 360 180 355 310 138 11 x 15 25 62
PSE8026241 10000 420 190 410 370 150 11 x 15 26 72
PSE8226241 12500 420 190 410 370 150 11 x 15 29 80
PSE8036241 16000 420 225 410 370 185 11 x 15 40 100
PSE8237241 20000 480 225 460 430 185 11 x 15 55 120
PSE8016261 25000 480 250 460 430 210 11 x 15 64 140
PSE8006281 30000 480 280 460 430 240 11 x 15 70 175
PSE8026281 40000 600 300 570 550 160 12,5 x 25 90 200
PSE8036281 50000 600 300 570 550 160 12,5 x 25 100 230
PSE8046281 63000 600 350 570 550 210 12,5 x 25 105 280
PSE8056281 80000 600 350 570 550 210 12,5 x 25 110 300
PSE8066281 100000 600 375 570 550 235 12,5 x 25 130 350
