Single phase rectifier without smoothing series EMA/GR for industrial needs with power from 24VA to 240VA. With bridge rectifier and varistor for protection against back surges.
| Operation: |
VDE 0570 part 2-6 / DIN EN 61558- 2-6 / IEC 61558- 2-6 |
| Protection: | IP 00, fixed |
| Isolation class: | ta40B |
| Frequency: | 50 / 60Hz |
| Primary: | 230V ± 5% |
| Secondary: | 24V DC |
| Ripple: | approximately 48% |

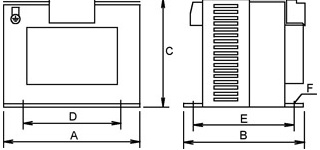

| Item No.: | Power | DC Current | Dimension (mm) | Weight(kg) | ||||||
| (VA) | (A) | A | B | C | D | E | F | Cu. | Whole | |
| PS23116631 | 24 | 1 | 66 | 70 | 77 | 50 | 42 | 9 x 4,5 | 0,2 | 1 |
| PS23126631 | 48 | 2 | 78 | 90 | 87 | 56 | 70 | 9 x 4,5 | 0,3 | 1,3 |
| PS23136631 | 72 | 3 | 78 | 100 | 87 | 56 | 80 | 9 x 4,5 | 0,6 | 2,3 |
| PS23146631 | 120 | 5 | 96 | 105 | 105 | 84 | 87 | 11 x 5,5 | 0,6 | 2,6 |
| PS23156631 | 168 | 7 | 120 | 135 | 115 | 90 | 113 | 11 x 5,5 | 1,2 | 4,3 |
| PS23166631 | 240 | 10 | 120 | 135 | 115 | 90 | 113 | 11 x 5,5 | 1,2 | 4,8 |
